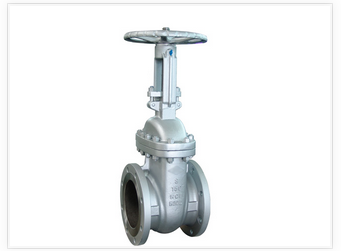

API600 Cast Steel Gate Valve
Design standard: API 600
Face to face: ASME B16.10
Flange end: ASME B16.5/ASME B16.47
BW end: ASME B16.25
Wall thickness: API 600/ASME B16.34
Inspection and test: API 598
Pressure and temperature rating: ASME B16.34
Product range: NPS 2″~NPS 64″,CL150~CL2500
Material: WCB､LCB､WCC､WC6､WC9､CF8､CF8M､CF3､CF3M､A890 4A etc.

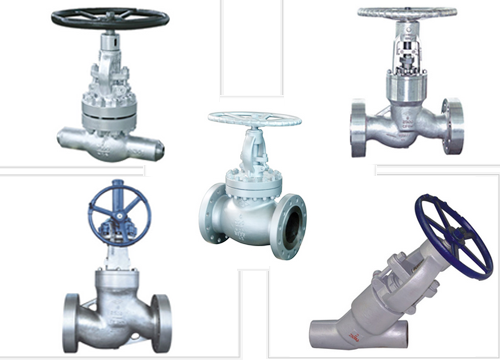

BS1873 Cast Steel Globe Valve
Design standard: BS 1873
Face to face: ASMEB16.10
Flange end: ASME B16.5
BW end: ASME B16.25
Wall thickness: ASME B16.34
Inspection and test: API 598
Pressure and temperature: ASME B16.34
Product range: NPS 2″~NPS 30″,CL150~CL2500
Material: WCB､LCB､WCC､WC6､WC9､CF8､CF8M､CF3､CF3M､A890 4Aetc.
Operation: handle, bevel gear, electric, pneumatic, etc.

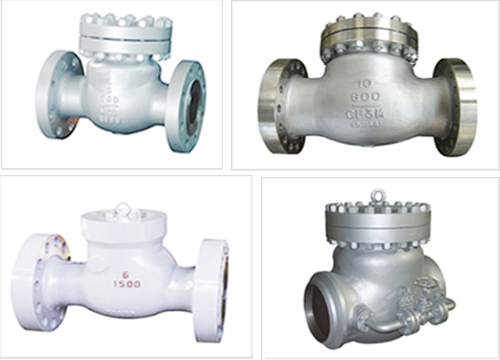

API 6D / BS 1868 Swing Check Valve
Design standard: BS 1868/API 6D
Face to face: ASMEB16.10/API 6D
Flange end: ASME B16.5/ASME B16.47
BW end: ASME B16.25
Wall thickness: ASME B16.34
Inspection and test: API 598 /API 6D
Pressure and temperature: ASME B16.34
Product range: NPS 2″~NPS 36″,CL150~CL2500
Material: WCB､LCB､WCC､WC6､WC9､CF8､CF8M､CF3､CF3M､A890 4A etc.

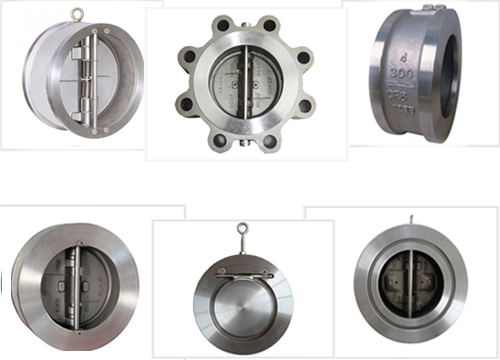

API 594 Check Valve
Design standard: API 594
Face to face: API 594
Pipe flange: ASME B16.5
Wall thickness: ASME B16.34
Inspection and test: API 598
Pressure and temperature: ASME B16.34
Product range: NPS 1/2″~NPS 36″,CL150~CL2500
Material: WCB､LCB､WCC､WC6､WC9､CF8､CF8M､CF3､CF3M､A890 4A､A105､LF2､F11､F22､F51､F91､F304､F316､F304L､F316L etc.

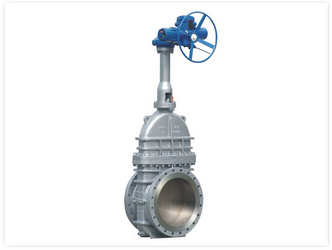

API6D Slab Gate Valve
Design standard: API 6D
Length of structure: API 6D
Flange end: ASME B16.5/ASME B16.47
BW end: ASME B16.25
Wall thickness: ASME B16.34
Inspection and test: API 6D
Pressure and temperature rating:ASME B16.34
Product range: NPS 2″~NPS 60″,CL150~CL1500
Material: WCB､LCB､WCC､WC6､WC9､CF8､CF8M､CF3､CF3M､A890 4A etc.
Operation: handle, bevel gear, electric, pneumatic, etc.

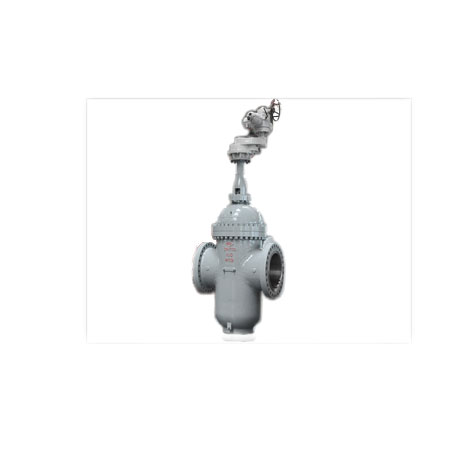

API6D Expanding Gate Valve
Design standard: API 6D
Face to face: API 6D
Flange end: ASME B16.5/ASME B16.47
BW end: ASME B16.25
Wall thickness: ASME B16.34
Inspection and test: API 6D
Pressure and temperature rating: ASME B16.34
Product range: NPS 2″~NPS 36″,CL150~CL900
Material: WCB､LCB､WCC､WC6､WC9､CF8､CF8M､CF3､CF3M､A890 4Aetc.
Operation: handle, bevel gear, electric, pneumatic, etc.
