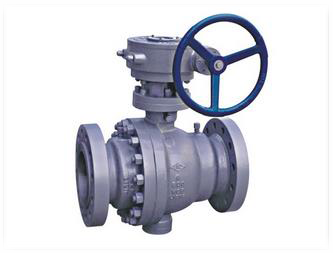

2-PC Trunnion Ball Valve
Design standard: API 6D
Flange ends: ASME B16.5/ASME B16.47
BW ends: ASME B16.25/ ASME B31.8
Fireproof test: API 607/API 6FA
Inspection and test: API 6D
Pressure and temperature: ASME B16.34
Range: NPS 1-1/2″~NPS 60″,CL150~CL900
Body material: WCB､LCB､WCC､CF8､CF8M､CF3､CF3M､A890 4A etc.
Seat material: PTFE､RPTFE､NYLON､DEVLON､Derlin､PEEK､PPL､HNBR､FKMor metal hard seal etc.
Operation: Handle, gear, electric, pneumatic, pneumatic- hydraulic, electro-hydraulic, etc.

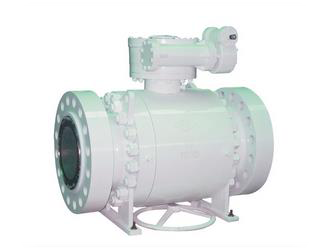

3-PC Trunnion Ball Valve
Design standard: API 6D
Length of structure: API 6D/ASME B16.10
Flange ends: ASME B16.5/ASME B16.47
BW ends: ASME B16.25/ ASME B31.8
Fireproof test: API 607/API 6FA
Inspection and test: API 6D
Pressure and temperature: ASME B16.34
Range: NPS 1-1/2″~NPS 60″,CL150~CL2500
Body material: A105､LF2､F304､F316､F304L､F316L､F51,WCB､LCB､WCC､CF8､CF8M､CF3､CF3M､A890 4A etc.
Seat material: PTFE､RPTFE､NYLON､DEVLON､Derlin､PEEK､PPL､HNBR､FKM or metal hard seal etc.
Operation: Handle, gear, electric, pneumatic, pneumatic- hydraulic, electro-hydraulic, etc

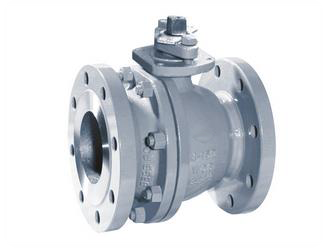

2-PC Floating Ball Valve
Design: ASME B16.34/ API 608
Flange ends: ASME B16.5
BW ends: ASME B16.25
Fireproof test: API 607/API 6FA
Inspection and test: API 598
Pressure and temperature: ASME B16.34
Range: NPS 1/2″~NPS 8″,CL150~CL600
Body material: WCB､LCB､WCC､CF8､CF8M､CF3､C3M､A890 4A､A105､LF2､F304､F316､F304L､F316L etc.
Seat material: PTFE､RPTFE､NYLON､DEVLON､Derlin､PEEK､PPL or metal hard seal etc.
Operation: Handle, gear, electric, pneumatic etc.
3-PC Floating Ball Valve
Design: BS 5351
BW ends: ASME B16.25
Fireproof test: API 607/API 6FA
Inspection and test: API 598
Pressure and temperature: ASME B16.34
Range: NPS 1/4″~NPS 2″,CL800~CL1500
Body material: A105､LF2､F304､F316､F304L､F316L etc.
Seat material: PTFE､RPTFE､NYLON､DEVLON､Derlin､PEEK､PPL etc
Operation: Handle, gear, electric, pneumatic etc

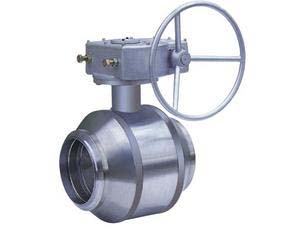

Fully Welded Body Ball Valve
Design: API 6D
Flange ends: ASME B16.5/ASME B16.47
BW ends: ASME B16.25/ ASME B31.8
Fireproof test: API 607/API 6FA
Inspection and test: API 6D
Pressure and temperature: ASME B16.34
Range: NPS 4″～NPS 60″,CL150～CL1500
Body material: A105、LF2、F304、F316、F304L、F316L、F51 etc.
Seat material:PTFE、RPTFE、NYLON、DEVLON、Derlin、PEEK、PPL、HNBR、FKM or metal hard seal etc.
Operation: Handle, gear, electric, pneumatic, pneumatic- hydraulic, electro-hydraulic, etc.
